Extension modules

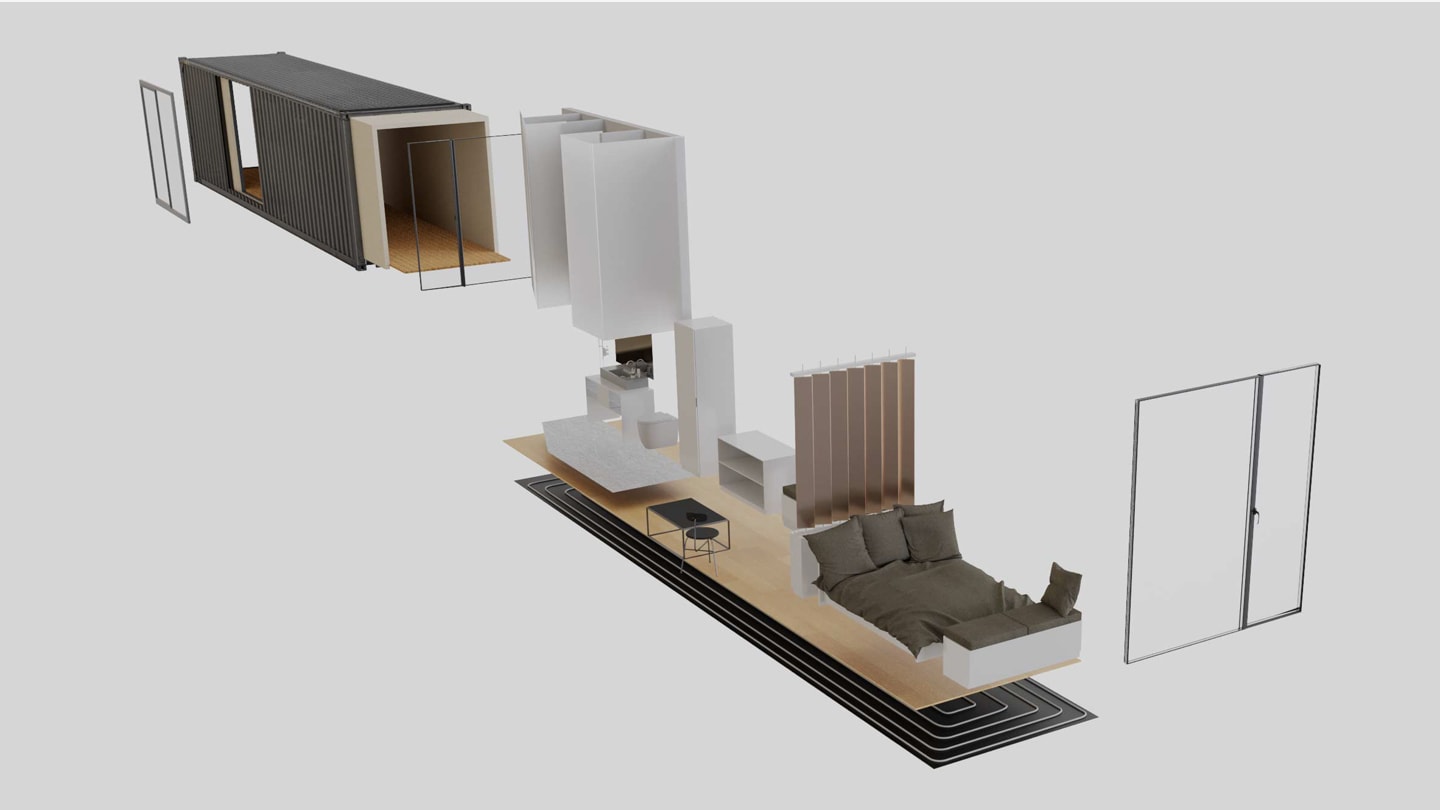

Equipment
Serial
Patented high-performance insulation, including wall and ceiling structure
Window and door elements on the front sides
Floor construction (insulation, sound decoupling, floor slab)
Optionally
Bathroom extension module with piped system walls ready for extension
Piped underfloor heating ready for connection
Window and door elements on the sides
Serial expansion modules

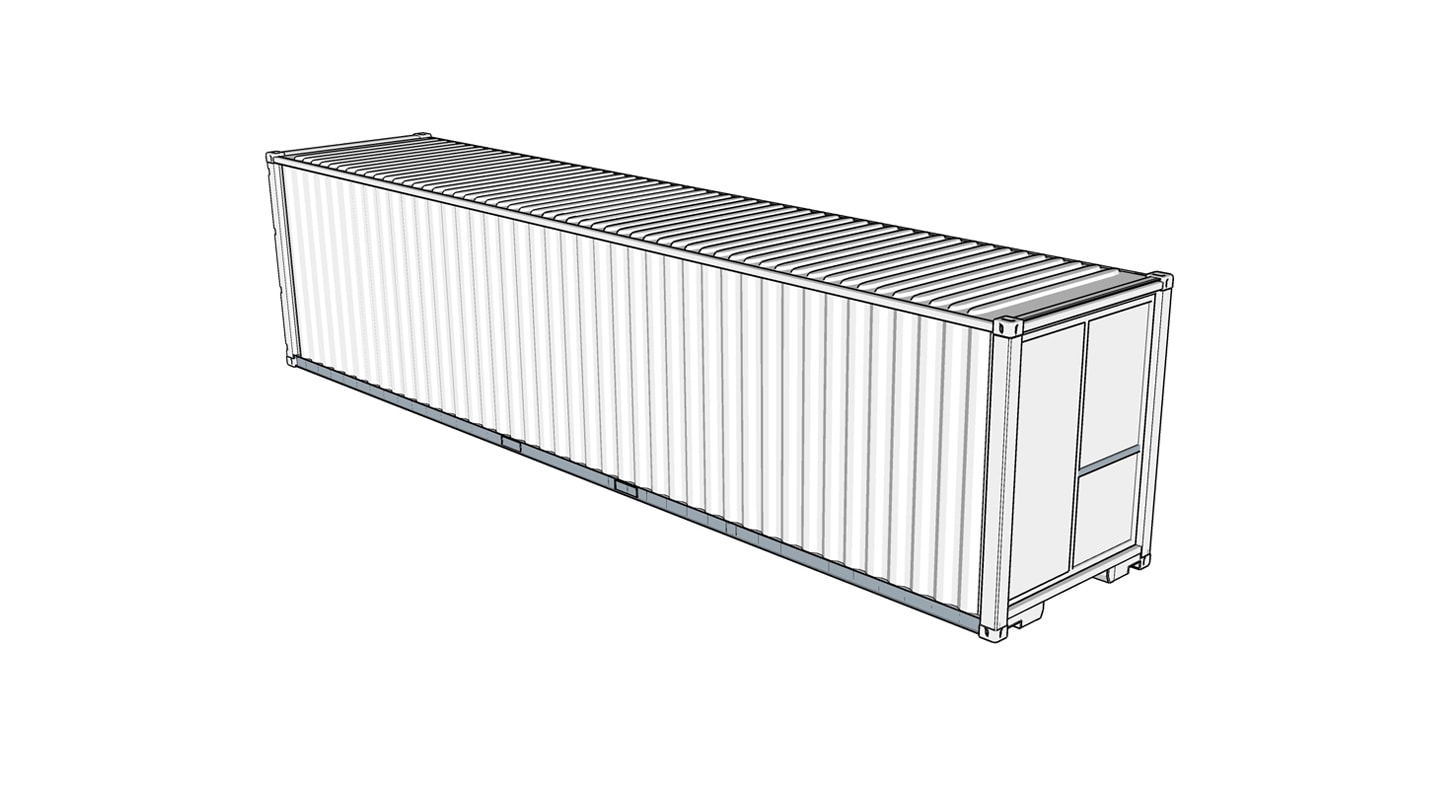

CW 40 S
GFA: approx. 29,8 m2
lwh on the outside: 12,2 x 2,4 x 2,9 m
lwh on the inside: 11,8 x 2,2 x 2,5 m
Living space: approx. 25,5 m2
Volume: approx. 63,7 m3

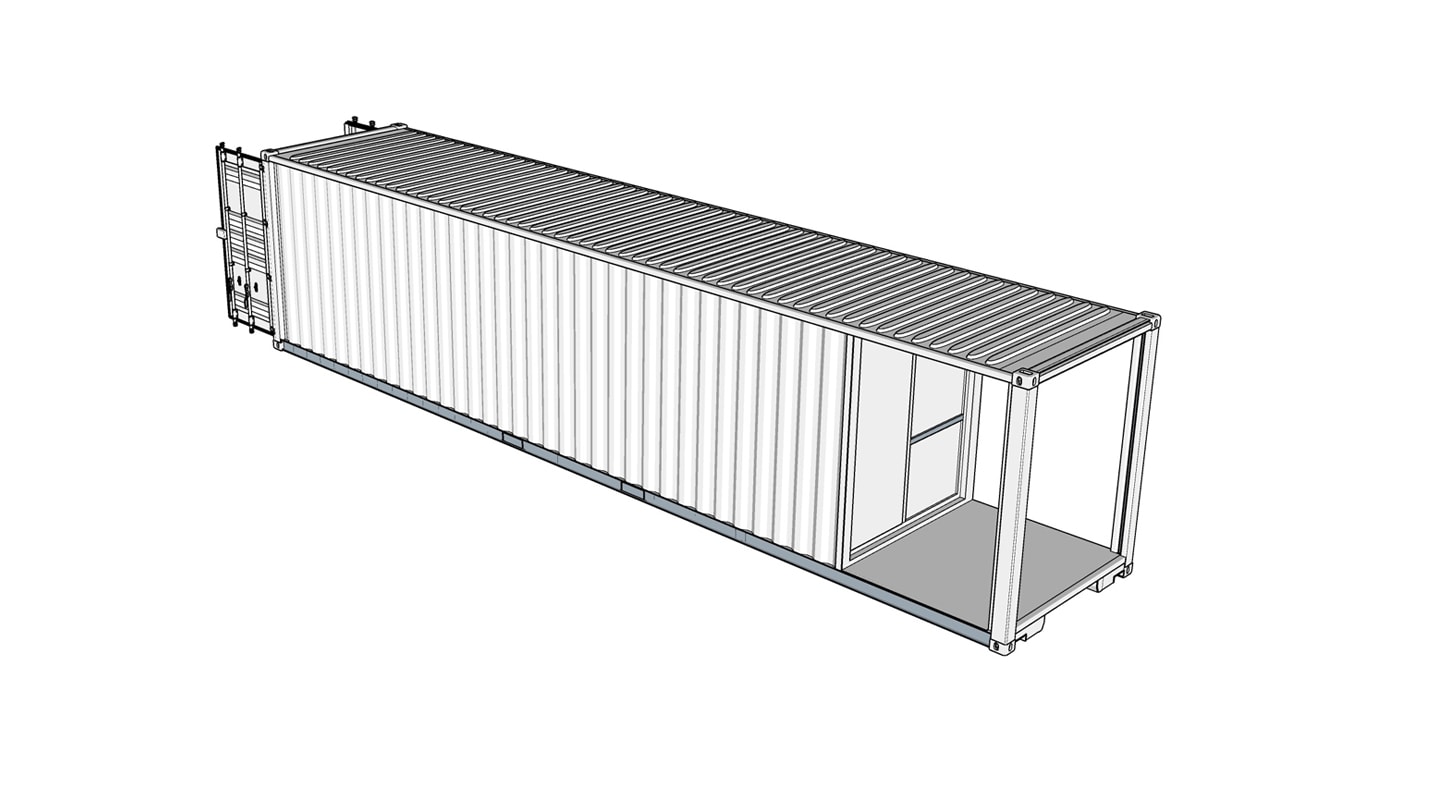

CW 40 S with arcade
GFA: approx. 29,8 m2
lwh on the outside: 12,2 x 2,4 x 2,9 m
lwh on the inside: 9,8 x 2,2 x 2,5 m
Living space: approx. 21,2 m2
Volume: approx. 52,9 m3

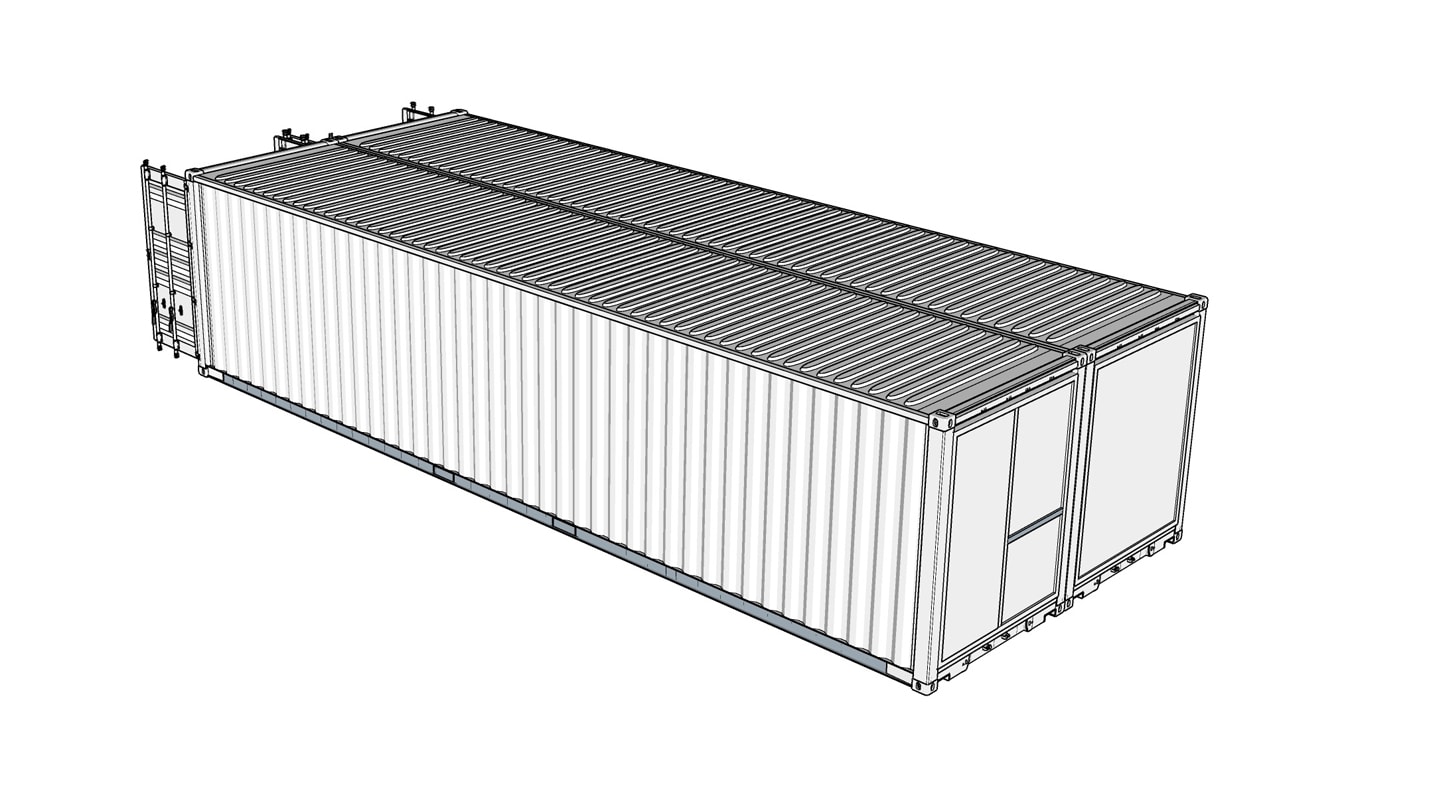

CW 40 D
GFA: approx. 59,5 m2
lwh on the outside: 12,2 x 4,9 x 2,9 m
lwh on the inside: 11,8 x 4,6 x 2,5 m
Living space: approx. 54,3 m2
Volume: approx. 135,7 m3

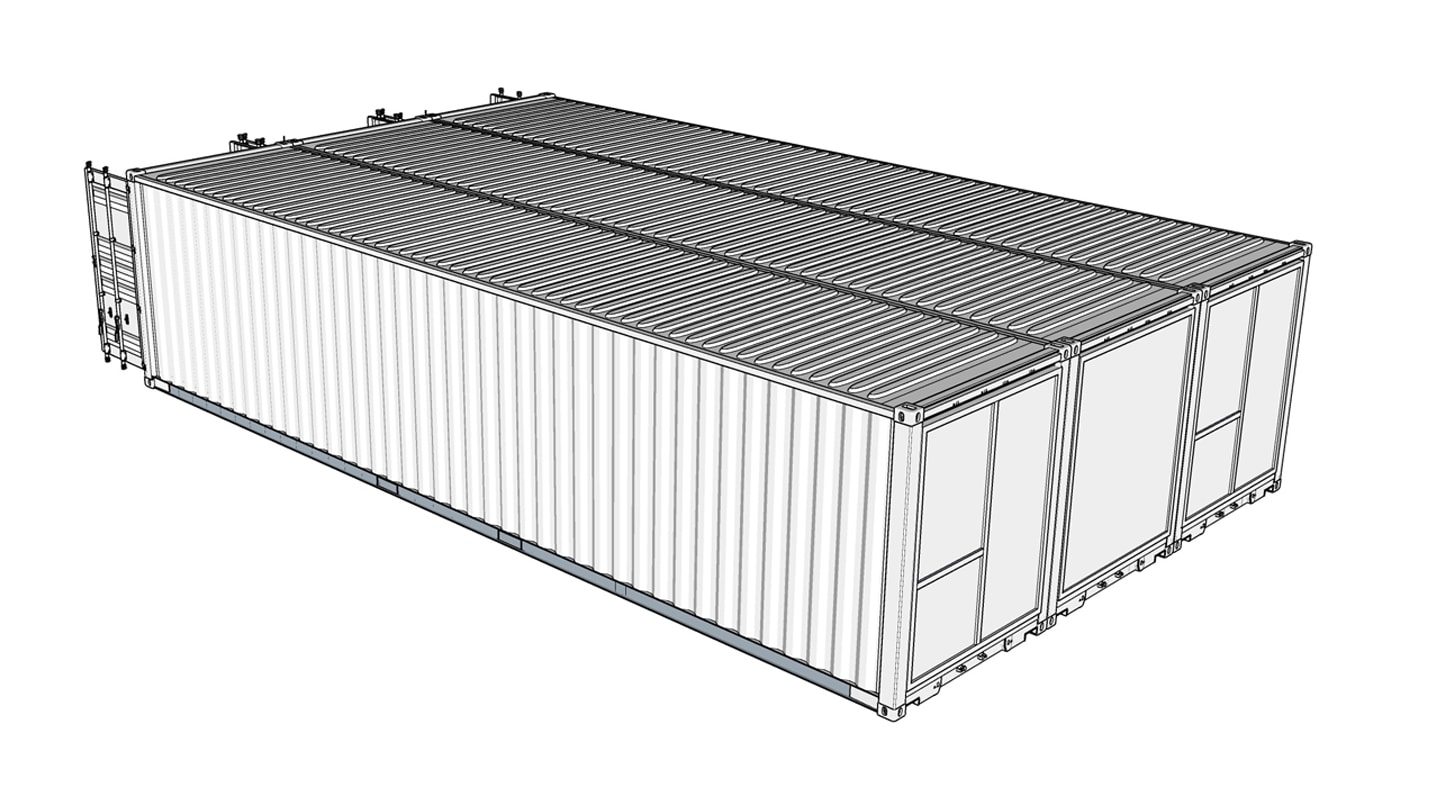

CW 40 T
GFA: approx. 89,3 m2
lwh on the outside: 12,2 x 7,3 x 2,9 m
lwh on the inside: 11,8 x 6,8 x 2,5 m
Living space: approx. 80,2 m2
Volume: approx. 200,6 m3

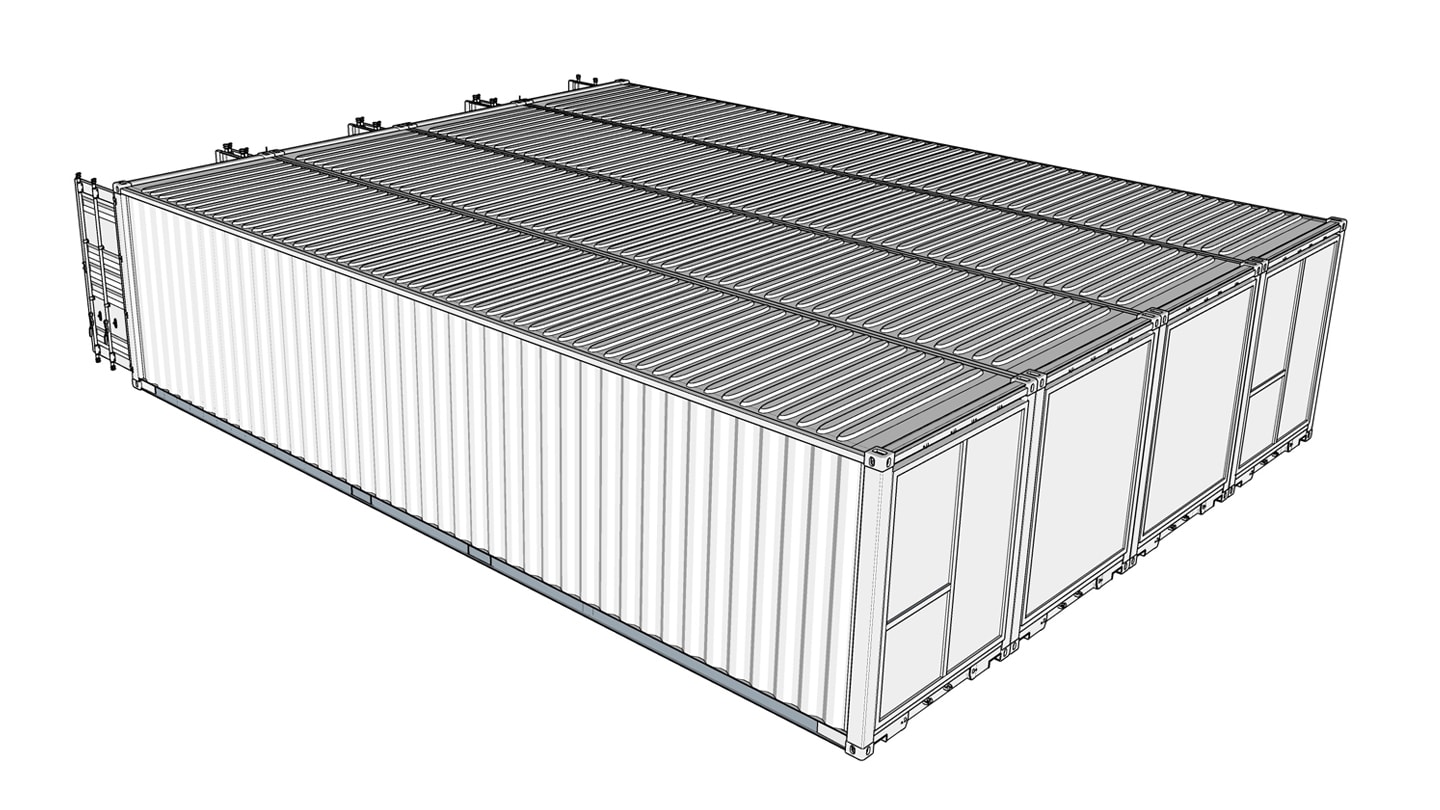

CW 40 Q
GFA: approx. 119,1 m2
lwh on the outside: 12,2 x 9,8 x 2,9 m
lwh on the inside: 11,8 x 8,9 x 2,5 m
Living space: approx. 105,3 m2
Volume: approx. 263,1 m3

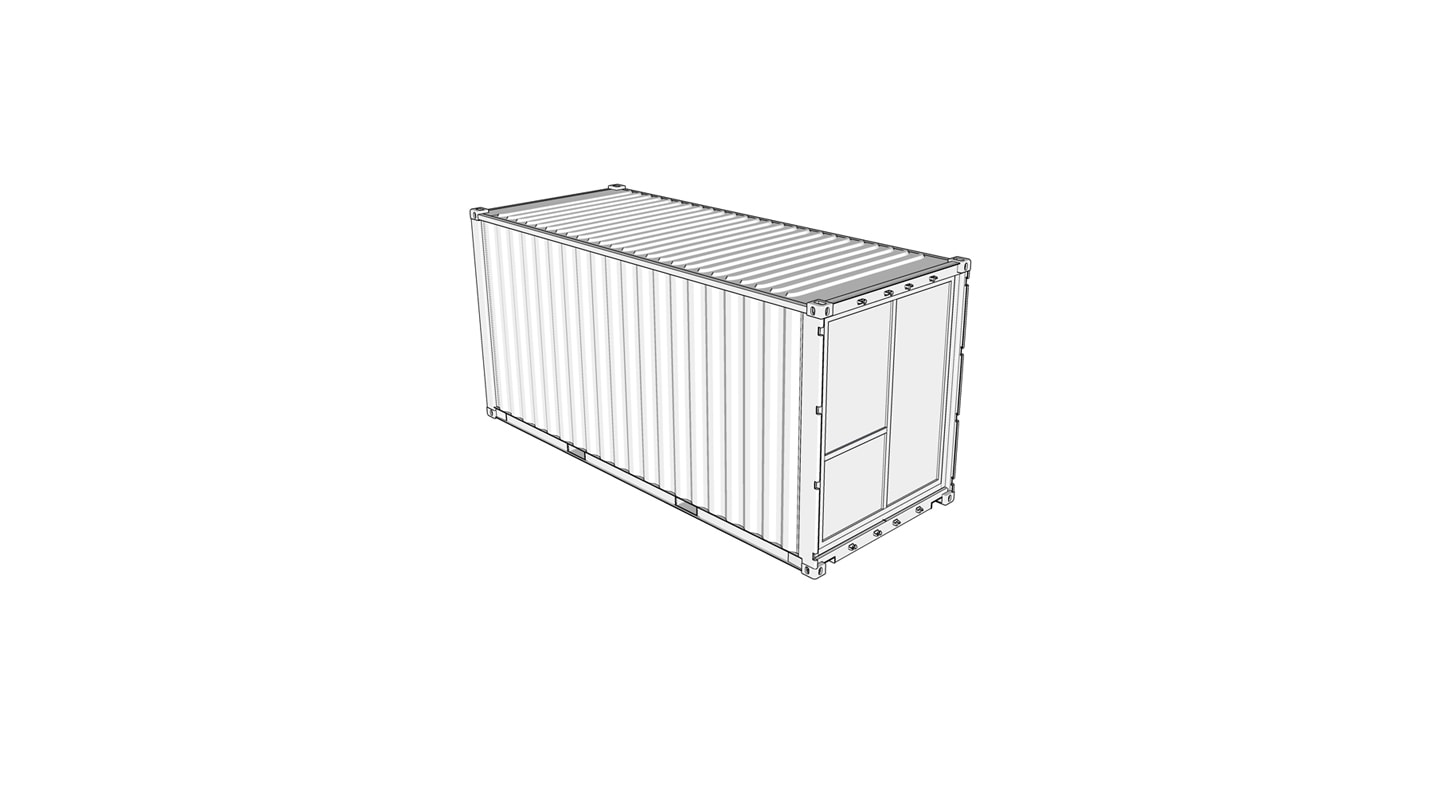

CW 20 S
GFA: approx. 14,8 m2
lwh on the outside: 6,1 x 2,4 x 2,9 m
lwh on the inside: 5,7 x 2,2 x 2,5 m
Living space: approx. 12,3 m2
Volume: approx. 30,7 m3

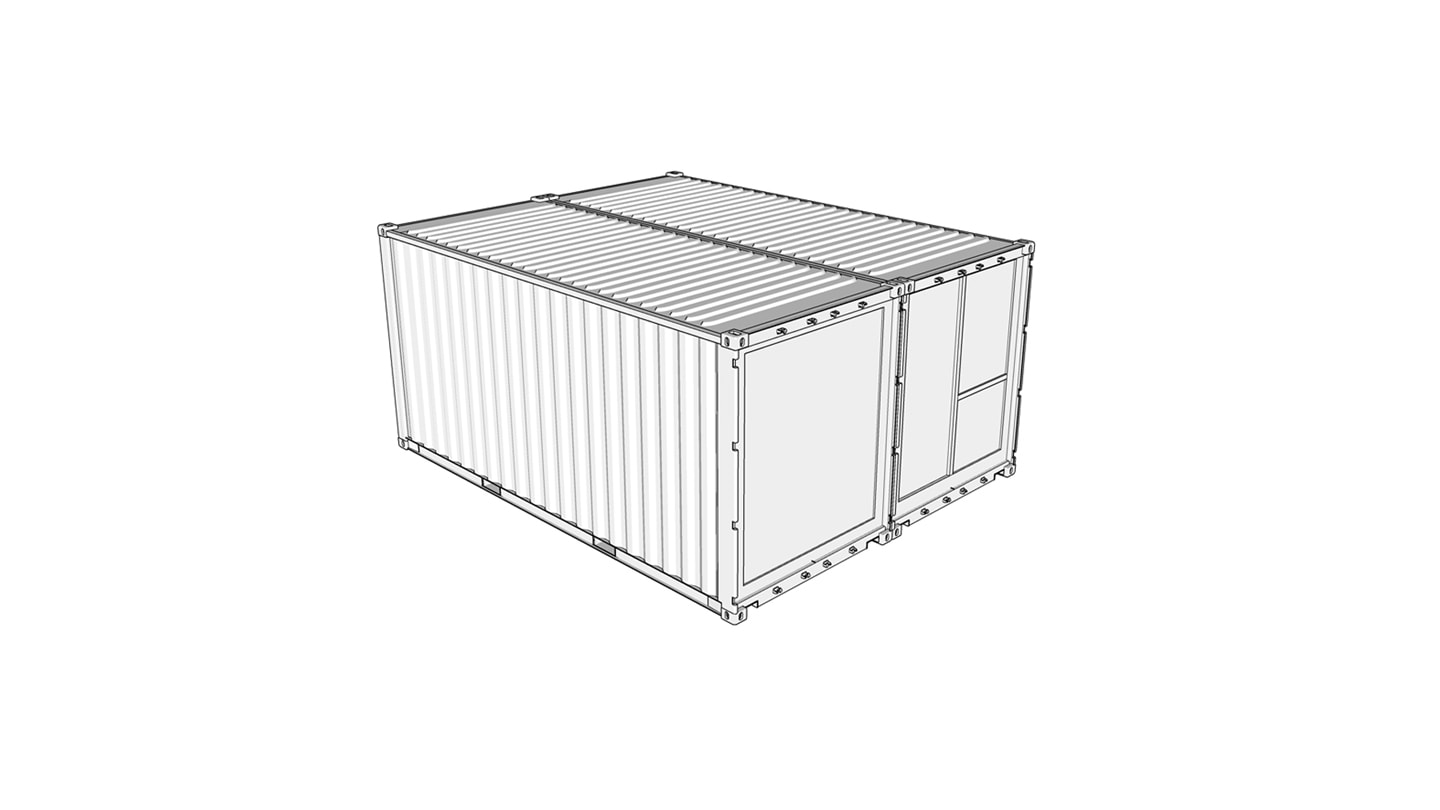

CW 20 D
GFA: approx. 29,6 m2
lwh on the outside: 6,1 x 4,9 x 2,9 m
lwh on the inside: 5,7 x 4,6 x 2,5 m
Living space: approx. 26,2 m2
Volume: approx. 65,6 m3

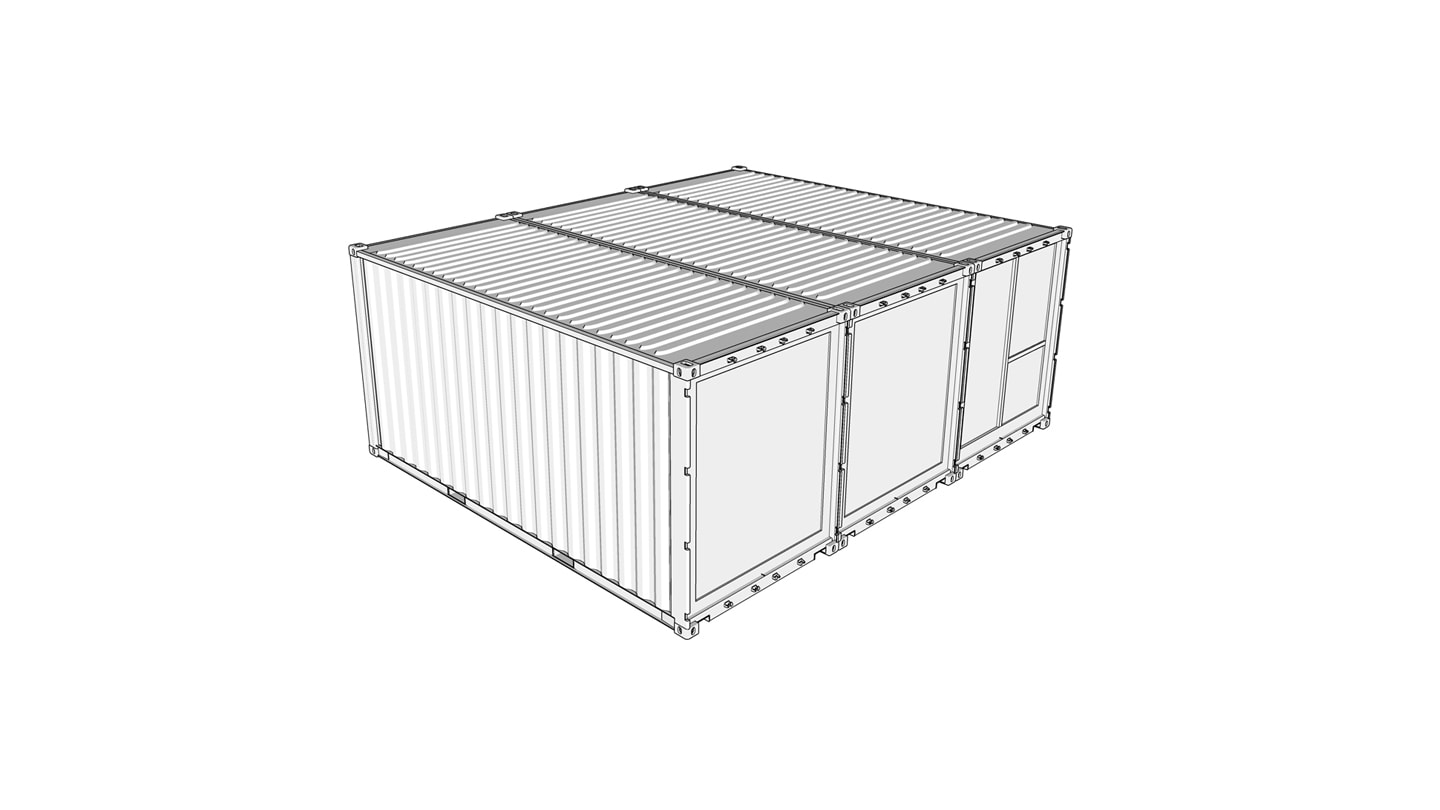

CW 20 T
GFA: approx. 44,4 m2
lwh on the outside: 6,1 x 7,3 x 2,9 m
lwh on the inside: 5,7 x 6,8 x 2,5 m
Living space: approx. 38,5 m2
Volume: approx. 96,3 m3

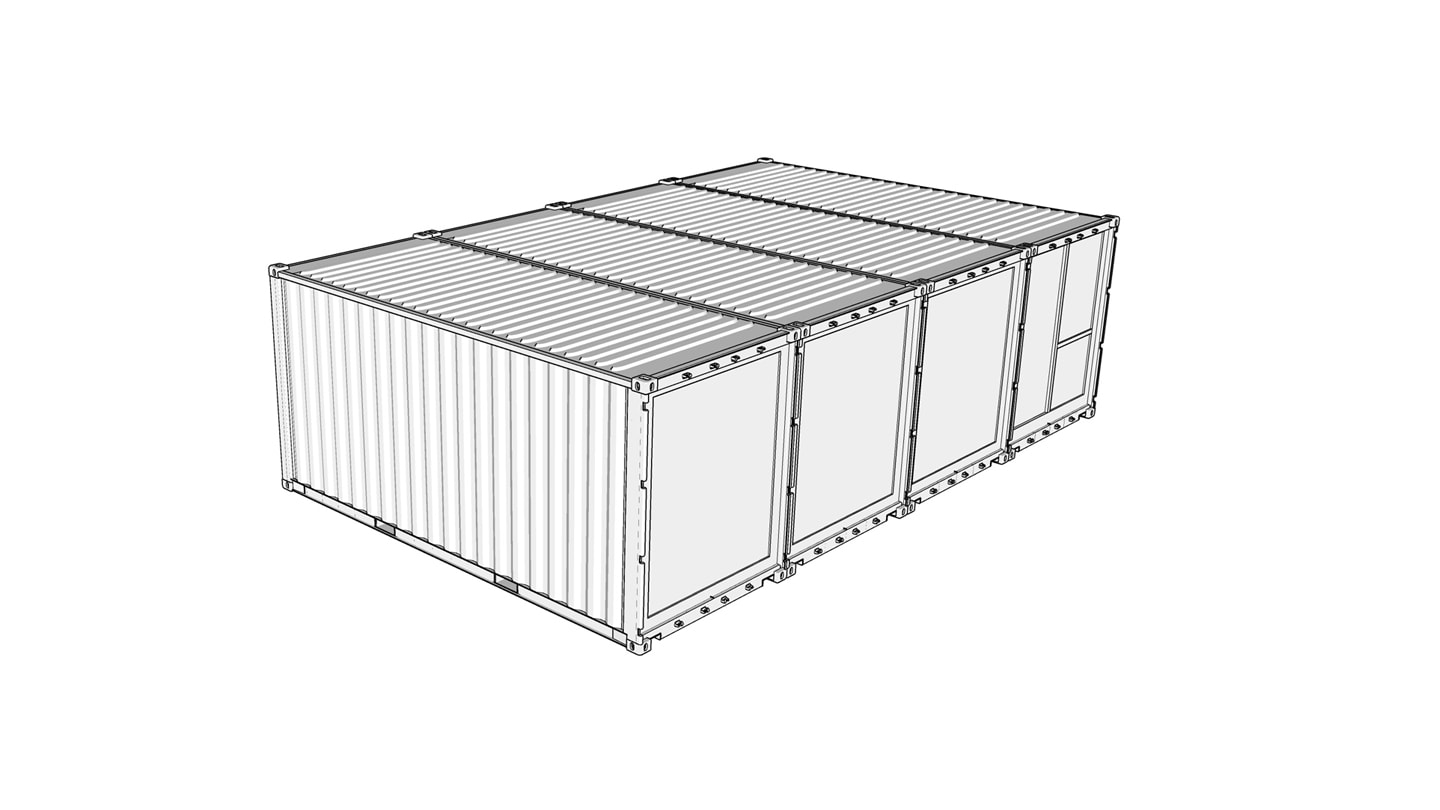

CW 20 Q
GFA: approx. 59,2 m2
lwh on the outside: 6,1 x 9,8 x 2,9 m
lwh on the inside: 5,7 x 8,9 x 2,5 m
Living space: approx. 50,8 m2
Volume: approx. 127,1 m3
Special expansion modules on request

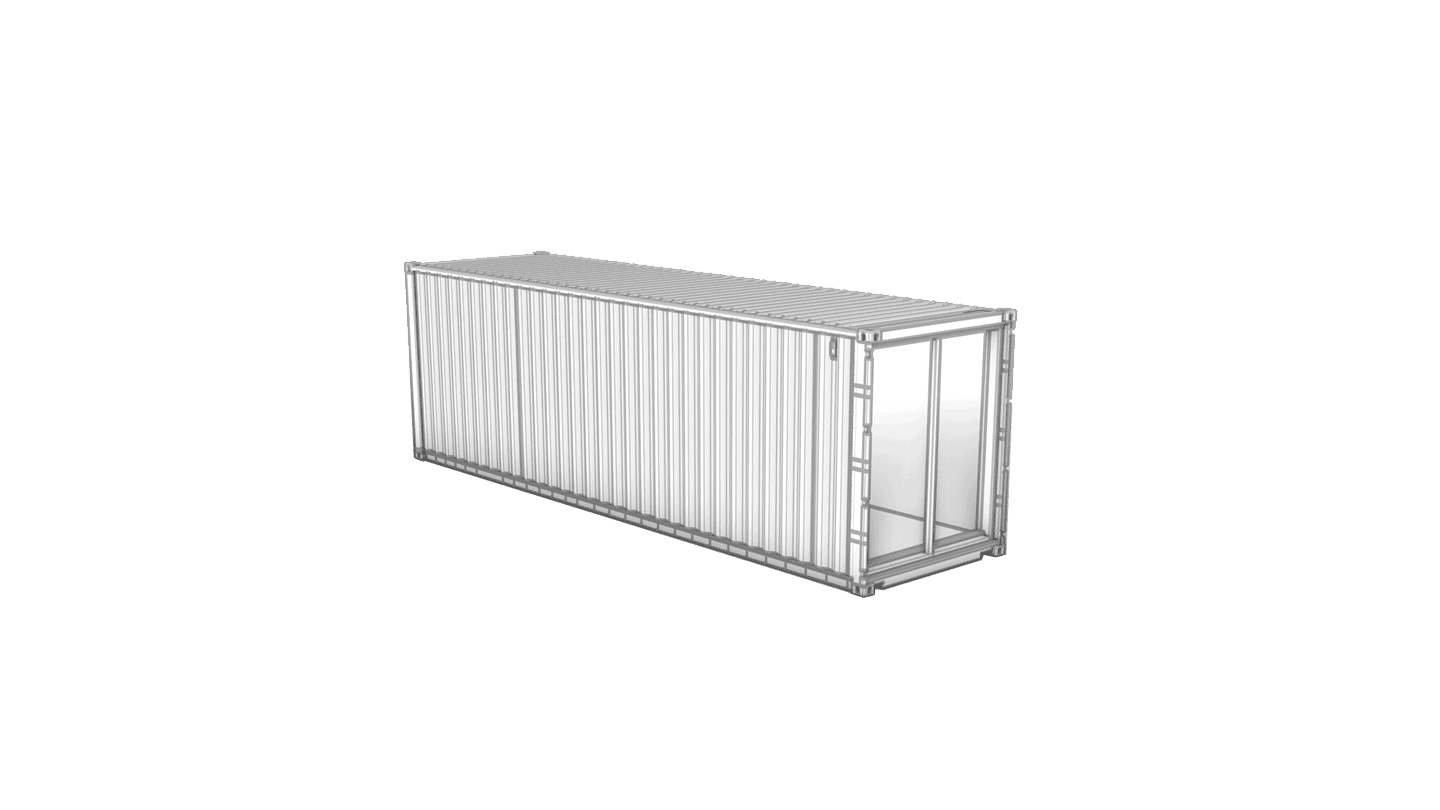

CW 30
On request
CW40/CW20
On request
Questions and answers about our expansion modules can be found in our FAQs.
